Program Output

Perhaps the most important question to a user may be what the program can produce as output. It can produce following files types:

Figure 1.1. The contour plot

screen shot of the contour plot

The above figure is a contour plot produced by the Win32 version of pdnmesh.

Figure 1.2. The contour plot filled

screen shot of the filled contour plot

The above figure is the same contour plot produced by the Win32 version of pdnmesh, this time filled.

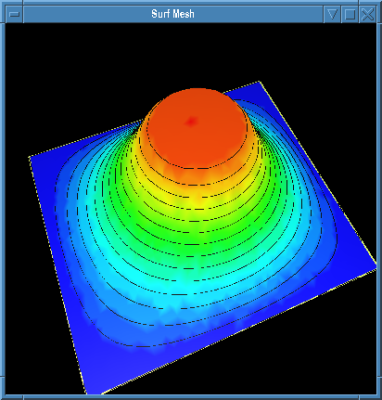

Figure 1.3. 3D contour plot

3D screen shot of the contour plot

It is possible to visualise the contour plot in 3D using OpenGL.

Figure 1.4. The gradient plot

screen shot of the gradient plot

This is the magnitude and direction of the gradient of the magnetic potential.

Figure 1.5. The mesh

screen shot of the mesh

The above figure gives the contour plot with mesh used to solve the problem. You can also see the different types of boundaries of the problem.
